3105 Bobină de aluminiu

3105 Bobină de aluminiu: Proprietăți, Aplicații, și Ghidul de cumpărare

3105 Aluminum Coil has become a go‑to choice for many manufacturers and builders who need a balance of strength, Formabilitate, and corrosion resistance—without paying the premium of high‑strength alloys.

As a non‑heat‑treatable, manganese‑modified aluminum alloy, 3105 offers a unique performance profile that suits roofing, fațade, closures, HVAC, and general industrial uses.

This in‑depth guide explains what 3105 Aluminum Coil is, why it matters, how it compares with other alloys, and how to choose a reliable supplier.

De asemenea, introduce Langhe Aluminium, a specialized producer of 3105 Aluminum Coil with a strong focus on quality, processing accuracy, and long‑term customer support.

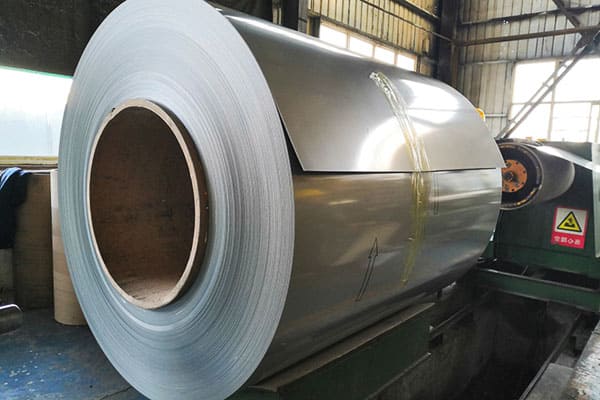

Ce este 3105 Bobină de aluminiu?

3105 belongs to the 3xxx series aluminum alloys, which use manganese as the primary alloying element.

As a coil product, 3105 Aluminum Coil refers to continuous aluminum strip wound into rolls for downstream processing such as slitting, cutting, Ștampilare, and forming.

Basic Alloy Overview

• Serie: 3xxx (Al -mn)
• Main alloying element: Mangan (~0.3–0.8%)
• Temper range: O, H12, H14, H16, H18, H22, H24, H26, etc..
• Product forms: Bobina, foaie, bandă
• Standarde: Commonly produced per ASTM B209, ÎN 485, GB/T standards

În practică, 3105 Aluminum Coil offers:

• Medium strength (higher than 1100, mai mic decât 3003)
• Rezistență excelentă la coroziune (especially in atmospheric and mildly industrial environments)
• Good weldability and moderate machinability
• Very good formability in softer tempers
• Excellent suitability for painting and coating

Compoziție chimică a 3105 Bobină de aluminiu

Performanța 3105 Aluminum Coil derives directly from its carefully controlled chemistry. The typical composition follows recognized international standards.

Compoziție chimică tipică (Greutate %)

Because 3105 is a wrought alloy, producers must keep these ranges tight. Langhe Aluminum uses spectrometric analysis and batch tracking to maintain consistent chemistry across coils, which helps customers achieve predictable forming and coating results.

Mechanical Properties and Physical Characteristics

3105 Aluminum Coil does not rely on heat treatment. În schimb, its strength comes from cold working (Întărirea tulpinii). Proprietățile mecanice variază în funcție de temperatură, grosime, și istoricul procesării.

Typical Mechanical Properties by Common Temper (Room Temperature)

Values are reference ranges; actual numbers depend on coil thickness and production route.

Proprietăți fizice cheie

• Densitate: ~2.73 g/cm³ (lightweight compared to steel at ~7.85 g/cm³)
• Melting range: ~630 – 655 ° C.
• Conductivitate termică: ~150–180 W/m·K (good heat transfer for HVAC)
• Conductivitate electrică: ~40–45% IACS (suitable for some electrical applications)
• Coefficient of thermal expansion: ~23–24 µm/m·°C

Aceste proprietăți fac 3105 Aluminum Coil an efficient material in energy‑related systems, such as heat exchangers and insulated roofing, where weight, thermal behavior, and corrosion resistance all matter.

Corrosion Resistance and Surface Performance

Atmospheric and Industrial Corrosion

3105 Aluminum Coil forms a stable oxide layer in air. Manganese in the alloy helps maintain corrosion resistance even in slightly polluted or coastal environments. In typical building climates:

• Urban atmosphere: Long service life with minimal pitting
• Rural environments: Very low corrosion rates
• Coastal areas: Good resistance, especially when painted or coated

When combined with high‑quality surface treatment—like pre‑painting, Anodizant, or PVDF coating—3105 can deliver decades of service in roofing and facades.

Compatibility with Coatings

3105 is widely used as a substrate for:

• Poliester (PE) architectural coatings
• Polyvinylidene fluoride (PVDF) high‑durability coatings
• Epoxy and acrylic primers and backing coats
• Food‑grade coatings for closure stock

The alloy’s surface responds well to chemical pre‑treatment (De ex., chromate‑free conversion coatings), which improves paint adhesion and corrosion resistance. Langhe Aluminum tailors coil surface roughness and cleanliness to meet strict coating line requirements.

De lucru: Formare, Sudare, and Machining

Formabilitate

3105 Aluminum Coil offers:

• Excellent formability in O and H12 tempers
  Suitable for deep drawing, îndoire, and complex stamping.
• Good formability in H14 and H24 tempers
  Works for roll forming, moderate drawing, and press braking.

Common forming methods include:

• Roll forming for roofing and cladding panels
• Stamping for closures and caps
• Bending and folding for trims and flashings
• Spinning for small vessels or decorative elements

Weldabilitate

3105 welds readily with:

• MIG and TIG processes
• Resistance spot welding

Welded joints retain reasonable strength and corrosion resistance. Proper filler selection (adesea 4043 sau 5356 depending on joint geometry and exposure) ensures sound welds.

Machinabilitatea

Although not a dedicated machining alloy, 3105 oferte:

• Adequate chip formation with standard cutting tools
• Better machinability in harder tempers (H14, H16, H18)
• Clean edges when slitting and shearing with sharp tooling and proper clearance

For high‑volume coil processing, Langhe Aluminum optimizes crown, Flatitate, and edge quality to reduce scrap and improve downstream efficiency.

Typical Dimensions, Tempers, and Standards

Common Coil Specifications

Industrial users often order 3105 Aluminum Coil in a range of thicknesses and widths tailored to their equipment.

Tempere disponibile

• O: Soft annealed; ductilitate maximă
• H12 / H14: Light and half‑hard; popular for roofing and painted coils
• H16 / H18: Full‑hard for higher strength and stiffness
• H22 / H24 / H26: Partially annealed; balanced formability and strength

Langhe Aluminum supplies a broad temper range and can help select the right temper based on bending radius, forming depth, and load requirements.

Aplicații de 3105 Bobină de aluminiu

3105 Aluminum Coil appears in a wide range of industries due to its balanced profile.

Clădire și construcție

3105 plays a major role in lightweight, durable building systems.

Roofing and Cladding

• Standing seam roofing panels
• Corrugated and trapezoidal sheets
• Soffits and eaves
• Wall cladding and facades
• Gutter and downpipe systems

Avantaje:

• Low weight reduces structural loads
• Excellent corrosion resistance extends service life
• Compatibility with PVDF and polyester coatings enables vivid, durable colors
• Good formability supports complex panel profiles and joints

Architectural Accessories

• Flashings and trims
• Ridge caps and valley components
• Rame pentru ferestre și ușă (in combination with other alloys)
• Decorative fascia and capping systems

Packaging and Closures

In packaging, 3105 Aluminum Coil is used for:

• Screw caps and closures for beverages and food
• Cosmetic packaging components
• Non‑pressure containers
• Multi‑layer laminated packaging

Beneficii:

• Adequate strength for forming and sealing
• Good printability and coating adhesion
• Reliable performance in contact with food‑grade coatings

HVAC and Heat Transfer Systems

3105’s thermal and corrosion characteristics help in:

• Air‑conditioning duct panels
• Heat exchanger fins and components
• Insulated cladding for HVAC pipelines
• Ventilation system components

Its lightweight nature reduces installation load, while corrosion resistance ensures long‑term performance.

General Industrial Uses

Additional uses include:

• Sign boards and display panels
• Appliance panels and housings
• Automotive interior trim components
• Carcase electrice (non‑structural)
• Lightweight furniture elements

Many of these rely on 3105’s formability and ability to accept decorative coatings.

3105 Aluminum Coil vs Other Aluminum Alloys

Choosing the right alloy often demands direct comparison. Below is a summary of how 3105 stands against commonly used coil alloys.

Comparative Properties Table

Cum 3105 Stands Out

• More strength than 1100, with only a slight increase in cost
• Slightly stronger than 3003 in many tempers, making it favorable for applications that need just a bit more load capacity
• Lower cost and easier forming than 5052, while still delivering good corrosion resistance

În practică, 3105 Aluminum Coil often serves as a “middle ground” alloy for architectural and packaging customers who want a balanced mix of properties without moving to high‑cost, high‑strength alloys.

Avantaje ale 3105 Aluminum Coil for End Users

1. Balanced Performance

3105 offers a smart trade‑off:

• Enough strength for structural but non‑critical components
• High corrosion resistance for outdoor exposure
• Good formability for complex shapes and profiles

This balance helps designers avoid over‑specification and excessive material cost.

2. Excellent Coating Compatibility

Coil coaters and finishers appreciate 3105’s:

• Uniform surface quality
• Stable mechanical behavior during tension leveling and coil coating
• Strong adhesion with modern chromate‑free pretreatments

For branded products or colored roofing, 3105 Aluminum Coil delivers consistent appearance and performance.

3. Lightweight Construction

Folosind 3105 instead of steel can reduce component weight by more than half. This reduction leads to:

• Lower transportation and installation costs
• Reduced structural load in building designs
• Easier handling on site or in the factory

4. Long Service Life

When combined with proper design and coating systems, 3105 components often last 20–40 years in building applications, and even longer in less aggressive environments.

5. Cost‑Effectiveness

Because 3105 is widely available and uses common alloying elements, it remains cost‑competitive. For many applications, it hits the “sweet spot” between performance and price.

Considerente și limitări

No material fits every scenario. Când specificați 3105 Bobină de aluminiu, ia în considerare:

Strength Limits

3105 does not match the strength of high‑magnesium 5xxx alloys or heat‑treated 6xxx alloys. Avoid using it for:

• High‑pressure vessels
• Heavy structural beams
• High‑stress automotive chassis elements

Temperature Constraints

În timp ce 3105 works well in typical building and industrial temperatures, prolonged exposure above ~150–200 °C can reduce strength due to recovery and recrystallization of the cold‑worked structure.

Coroziune galvanică

When 3105 contacts dissimilar metals (De ex., cupru, carbon steel) în prezența unui electrolit, galvanic corrosion can occur. Design adecvat, izolare, and joint detailing mitigate this risk.

Forming Limitations in Hard Tempers

In H18 or other hard tempers, bending radii must increase to avoid cracking. If complex forming is necessary, softer tempers should be selected.

How to Select 3105 Aluminum Coil for Your Project

Alegând dreptul 3105 Aluminum Coil involves several steps.

1. Define Application Requirements

Ia în considerare:

• Mechanical load and stiffness
• Environmental exposure (urban, coastal, industrial)
• Required service life
• Forming methods (Formarea ruloului, Ștampilare, desen profund)
• Coatings or surface finish

2. Choose Appropriate Temper

• Soft forming, desen profund: 3105‑O or H12
• Roll‑formed roofing and cladding: 3105‑H14 or H24 (common choice)
• Stiffer panels with minimal forming: 3105‑H16 or H18

Langhe Aluminum’s technical team often helps customers match temper to production line capabilities and product design.

3. Specify Thickness and Width

Thicker coils increase stiffness and load capacity, but also weight and cost. A typical roofing panel might use 0.5–0.7 mm; facade panels might use 0.7–1.2 mm depending on span and wind load.

4. Determine Surface Requirements

Opțiunile includ:

• Mill finish for components that will be painted or finished downstream
• Pre‑painted coil for direct panel production
• Stucco‑embossed surface to reduce reflection and increase aesthetic appeal

5. Clarify Standards and Certification

Ask for:

• Compliance with relevant standards (ASTM, ÎN, GB, etc.)
• Mill certificates (Compoziție chimică, Proprietăți mecanice)
• Coating specifications (for pre‑painted coils)
• Environmental and quality certifications (ISO 9001, ISO 14001)

Introduction to Langhe Aluminum: A Dedicated 3105 Coil Supplier

Aluminiu Langhe is a specialized manufacturer and processor of flat‑rolled aluminum, with a strong focus on 3xxx series alloys such as 3105 Bobină de aluminiu.

Company Focus and Capabilities

Langhe Aluminum provides:

• Continuous casting and hot‑rolling facilities
• Cold‑rolling mills capable of precise gauge control
• Advanced slitting and cut‑to‑length lines
• Coil coating lines for pre‑painted 3105 Bobină de aluminiu

This integrated setup helps maintain tight control over quality, delivery time, și cost.

Asigurarea calității

subliniază Langhe Aluminium:

• Spectrometric analysis of each melt to control alloy composition
• On‑line thickness and flatness measurement during rolling
• Testare mecanică (de tracţiune, duritate, elongaţie) by temper and batch
• Surface inspection for defects, zgârieturi, and coating uniformity

The company operates under internationally recognized quality standards and provides mill test certificates with every coil shipment.

Product Range in 3105 Bobină de aluminiu

Langhe Aluminum can supply:

• Grosime: despre 0.2 - 3.0 mm (special ranges on request)
• Lăţime: up to ~1600 mm depending on line capability
• Tempers: O, H12, H14, H16, H18, H22, H24, H26
• Suprafaţă: finisaj moara, stucco‑embossed, pre‑painted (PE, PVDF, etc.)
• Colors: standard RAL shades plus custom colors for branding projects

Customers in roofing, facade systems, closure stock, and HVAC sectors rely on Langhe Aluminum for consistent 3105 coils tailored to their production lines.

Technical Support and Customization

Langhe Aluminum does more than supply material. The company offers:

• Alloy and temper selection guidance
• Recommendations on thickness, lăţime, and forming radius
• Advice on coating systems and pre‑treatment chemistry
• Joint development of new profiles and shapes with OEMs

This collaborative approach helps users cut trial costs, minimize downtime, and speed up new product launches.

Processing and Handling Guidelines for 3105 Bobină de aluminiu

Correct handling preserves surface quality and mechanical properties.

Storage

• Keep coils in dry, ventilated areas, away from aggressive chemicals.
• Avoid direct contact with concrete floors—use pallets or coil saddles.
• Protect coils from sharp objects that could damage edges or surfaces.
• Cover pre‑painted coils to prevent dust and contamination.

Manipulare

• Use proper lifting equipment (coil tongs, C‑hooks, or specialized forks).
• Secure coils during transport to prevent movement and impact.
• Avoid dragging coil edges on hard surfaces.

Tăiere și tăiere

• Use sharp blades and correct clearances to avoid burrs and edge cracks.
• Control tension during slitting to maintain flatness and minimize camber.
• Clean cutting area regularly to avoid surface scratches.

Langhe Aluminum often provides practical handling guidelines with shipments to help customers maintain coil quality.

Economic and Sustainability Considerations

3105 Aluminum Coil contributes to both cost management and sustainability goals.

Cost Drivers

Key cost factors include:

• Aluminum ingot price (linked to global exchange benchmarks)
• Alloying element costs (MN, Mg, etc.)
• Rulare, finisare, and coating expenses
• Logistică (distance, coil weight, ambalaj)

3105’s moderate alloy content and broad availability help keep prices stable compared with more specialized grades.

Lifecycle Performance

Benefits across the product lifecycle:

• Producție: Efficient rolling and coating processes reduce waste.
• Use phase: Corrosion resistance and low maintenance lower life‑cycle costs.
• End‑of‑life: Aluminiul este foarte reciclabil, with up to 95% energy savings compared to primary production.

Recycled 3105 can re‑enter the coil production stream with appropriate sorting and remelting, supporting circular economy initiatives.

Întrebări frecvente despre 3105 Bobină de aluminiu

Este 3105 Aluminum Coil suitable for marine environments?

3105 provides good corrosion resistance, but it does not match the marine‑grade performance of 5xxx alloys such as 5083 sau 5052. For lightly exposed coastal roofing, especially with high‑quality coatings, 3105 works well. For immersed or highly aggressive marine conditions, marine‑grade alloys are preferable.

Poate 3105 Aluminum Coil be anodized?

Da, 3105 can be anodized. Cu toate acestea, compared with 5xxx alloys, the anodized finish may show slightly different color and clarity. For architectural anodizing with strict aesthetic demands, discuss specific requirements with your supplier. Many users prefer painting or coil coating for colored architectural applications.

Care este diferența dintre 3003 şi 3105 Bobină de aluminiu?

Both belong to the 3xxx series. 3105 generally offers slightly higher strength than 3003 due to its composition, making it advantageous where a small increase in load capacity is beneficial. Corrosion resistance and formability are similar, and both are widely used in building and packaging.

Pot să mă sudez 3105 Aluminum Coil to other aluminum alloys?

Da, 3105 can be welded to many other aluminum alloys, particularly 1xxx and 3xxx series, and some 5xxx alloys. When welding dissimilar alloys, choose suitable filler wire and consider differences in mechanical properties and corrosion behavior.

What thickness of 3105 Aluminum Coil should I use for roofing?

Common roofing panel thicknesses range from about 0.5 la 0.7 mm for residential and light commercial projects. For larger spans or higher wind loads, thicker panels (0.7–1.0 mm) may be necessary. Structural calculations and local building codes should guide the final selection.

Face 3105 Aluminum Coil support high‑speed coil coating lines?

Da. 3105 is widely used in the coil coating industry. With controlled flatness and mechanical properties, it runs reliably at high line speeds. Suppliers like Langhe Aluminum optimize 3105 production specifically for coil coating applications.

Cum face 3105 Aluminum Coil respond to bending?

În temperatură mai blândă (O, H12), 3105 bends easily with small radii. In harder tempers (H16, H18), bending radii must increase to prevent cracking. Always verify bending parameters based on temper, grosime, and tooling setup.

What standards govern 3105 Bobină de aluminiu?

Common standards include ASTM B209, EN 485/EN 573, and various national standards (such as GB/T). Langhe Aluminum produces and tests 3105 coils according to the applicable standard specified by each customer.

Este 3105 Aluminum Coil recyclable?

Da. Like other aluminum products, 3105 Aluminum Coil is fully recyclable. Recycling preserves most of aluminum’s properties while using significantly less energy than primary production.

Why choose Langhe Aluminum as a supplier of 3105 Bobină de aluminiu?

Langhe Aluminum offers integrated production, strict quality control, a wide range of tempers and surface finishes, and strong technical support. The company focuses heavily on 3xxx series alloys, making it a reliable partner for customers who use 3105 Aluminum Coil in roofing, fațade, closures, and HVAC applications.

Concluzie

3105 Aluminum Coil delivers a balanced combination of strength, Formabilitate, rezistență la coroziune, and cost‑effectiveness. For roofing, fațade, HVAC, ambalaj, and general industrial uses, it often provides exactly the performance needed—without the complexity or cost of high‑strength alloys.

When you specify 3105 Bobină de aluminiu:

• Match temper and thickness to your forming and load requirements.
• Consider coating and surface treatments for long‑term durability.
• Work with an experienced, quality‑focused supplier.

Langhe Aluminum stands out as a dedicated producer of 3105 Bobină de aluminiu, combining material expertise, advanced rolling and coating facilities, and customer‑centric technical support.

By partnering with a reliable supplier and understanding 3105’s capabilities, designers and manufacturers can create durable, eficient, and aesthetically pleasing products that perform over the long term.
